Brief introduction:DBW-W series single-phase intelligent contactless AC voltage regulator is a new generation of intelligent fast energy-saving voltage regulator power supply developed and produced by our company to meet the special needs of long power supply distance and frequent sudden changes in input voltage in combination with our country's national conditions. The central control system of the voltage regulator adopts the intelligent control of the microcontroller and is equipped with a digital display, whic

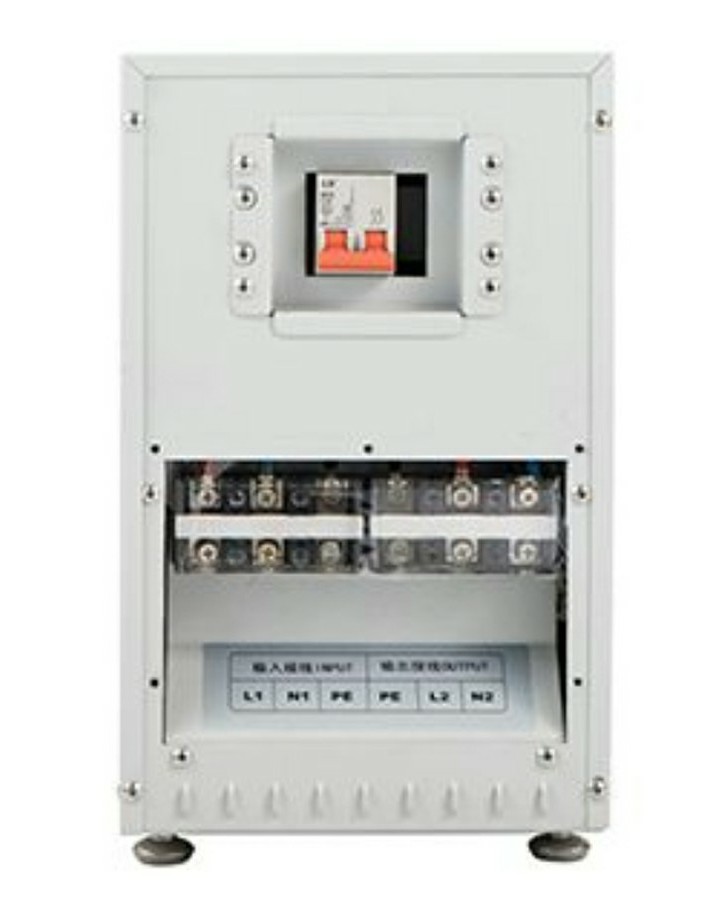

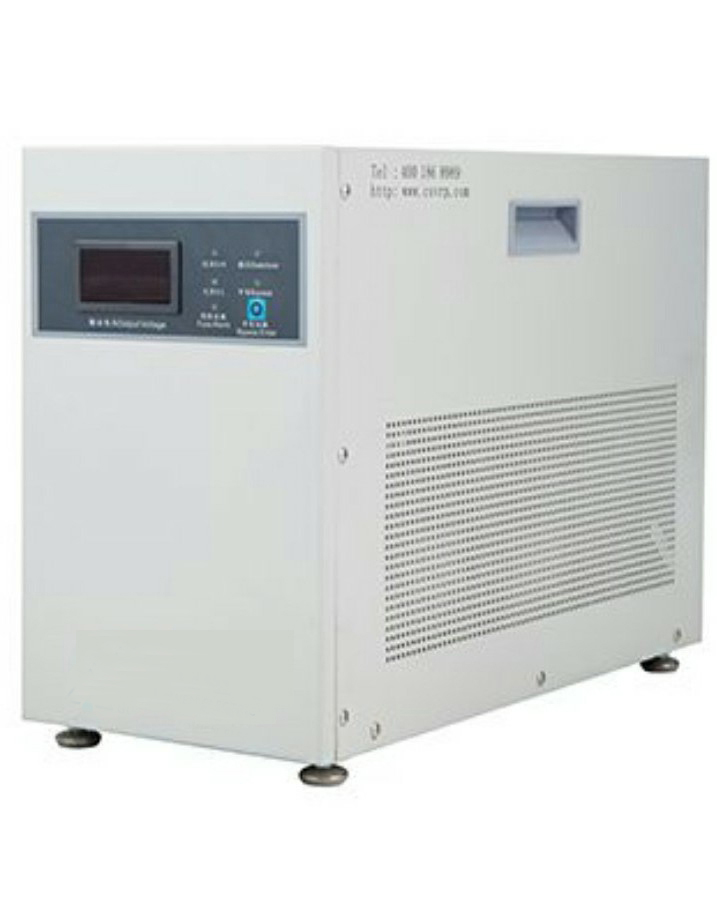

DBW-W series single-phase intelligent contactless AC voltage regulator is a new generation of intelligent fast energy-saving voltage regulator power supply developed and produced by our company to meet the special needs of long power supply distance and frequent sudden changes in input voltage in combination with our country's national conditions. The central control system of the voltage regulator adopts the intelligent control of the microcontroller and is equipped with a digital display, which highlights the safety, stability, energy saving and user-friendly human-machine interface of the equipment. Compared with the traditional DBW series single-phase compensated voltage regulator and SVC high-precision voltage regulator, it has three significant advantages: intelligent control and digital display, fast voltage regulation, and silent energy saving. DBW-W series single-phase intelligent contactless AC regulators are especially suitable for long-distance power supply and frequent input voltage sudden changes in power supply environments, and are a comprehensive replacement for traditional DBW series single-phase compensated voltage regulators and SVC high-precision regulators. DBW-W series single-phase intelligent contactless AC regulator is generally used indoors, and the normal use conditions are: 1. Ambient temperature: -10°C—+45°C 2. Altitude: <1000M 3. Relative humidity: 20%-90% 4. There are no gases, steam, chemical deposits, dust, dirt and other explosive and corrosive media that seriously affect the insulation of the voltage regulator. 5. There is no serious vibration or bump in the installation site.
DBW-W series single-phase intelligent contactless AC regulatorMain technical indicators | ||
input | Allowed input voltage range | Conventional single-phase AC160V-275V or wide range specially customized |
Voltage regulation range | Conventional single-phase AC176V-264V or wide range specially customized | |
frequency | 50HZ/60HZ | |
output | Rated voltage | Phase voltage AC 220V |
Center voltage | ±7c/o (usually shipped according to AC220V, please specify for other value orders) | |
Voltage regulation accuracy | ±(2-7)c/o optional (usually shipped at ±2.5c/o) | |
Response time | ≤5ms | |
Stabilization time | ≤100ms | |
Waveform distortion | No additional waveform distortion (static) | |
efficiency | 97c/o ≥ below 15KVA, 98c/o ≥ 15KVA and above | |
Delayed output | Voltage regulation before output (protect equipment from shock) | |
Overvoltage | If the output phase voltage is less than 10c/o (245V), the output is cut off | |
Undervoltage | The output phase voltage is less than 10c/o (195V), and the output is cut off or uninterrupted steering bypass (for maximum compensation) | |
protection | overload | Electronic detection, overload cuts off the output for about 1 minute |
Overcurrent | Dual protection of electronic detection and circuit breaker | |
short circuit | Dual protection of electronic detection and circuit breaker | |
bypass | Manual or uninterrupted automatic bypass | |
instructions | voltage | It has a numeric display of true RMS |
Working status | Regulated voltage state/mains power state | |
abnormal | Overvoltage, undervoltage, overload, fuse blowing | |
How it works | It has two working modes: voltage regulation and mains power | |
Voltage adjustment method | Triac compensation | |
Overload capacity | 3 times the rated current for 1 second | |
Model | Voltage Regulation Range (V) | Rated Capacity (KVA) | Rated Current (A) | Cabinet Dimensions (mm) W x Thick x H W x D x H | weight |
（kg） | |||||
DBW-W-3 | Single ±20％ | 3 | 13.5 | 220×500×370 | 20 |
DBW-W-5 | 5 | 22.5 | 25 | ||
DBW-W-10 | 10 | 45 | 38 | ||
DBW-W-15 | 15 | 68 | 260×600×400 | 45 | |
DBW-W-20 | 20 | 91 | 350×600×640 (with locking wheels) | 59 | |
DBW-W-30 | 30 | 137 | 81 | ||
DBW-W-50 | 50 | 228 | 133 |
